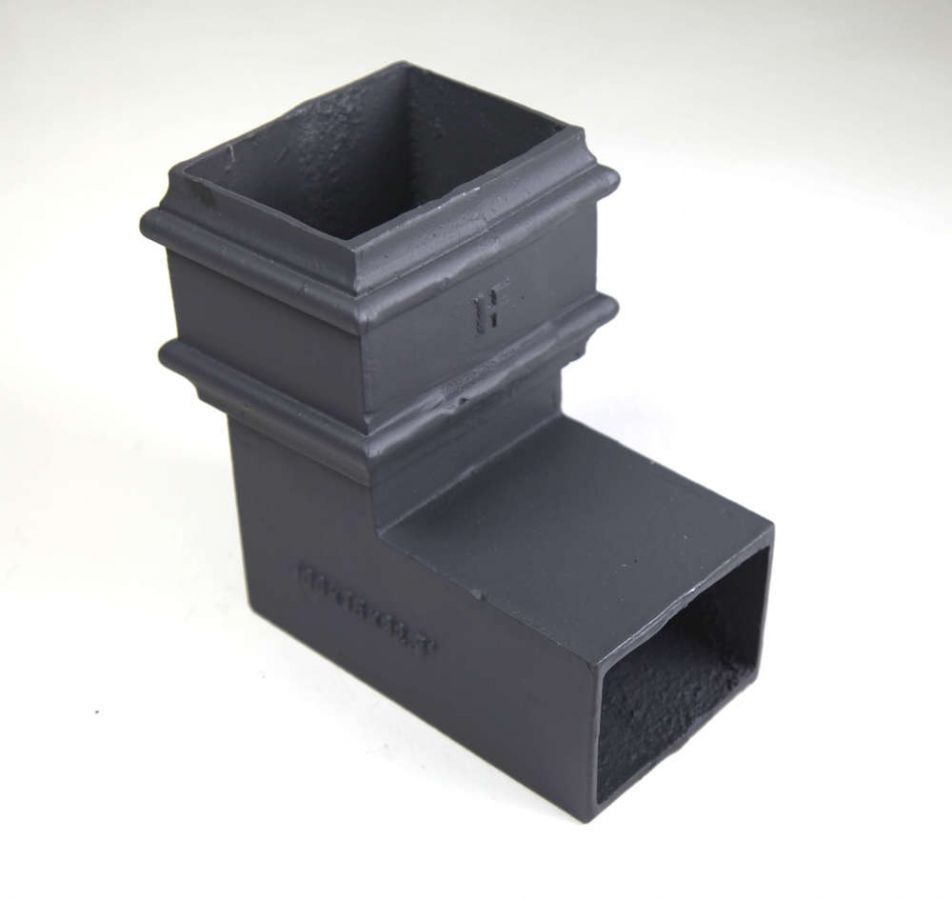

Cast Iron Rectangular Downpipe Bend - 92.5 Degree x 100mm x 75mm Primed

This 92.5 Bend is used in the 100mm rectangular cast iron downpipesystem to change the plane of the bend from vertical to horizontal or vice versa.

They are often used instead of offset bends when the soffit is particularly wide - this enables the pipe to run neatly below the soffit rather than dropping down diagonally back to the wall as it would with a normal swan neck setup.

The angle of the bend is 92.5 degrees rather than 90 degrees to encourage a slight fall, enabling rainwater to run away rather than sit in the pipe.
