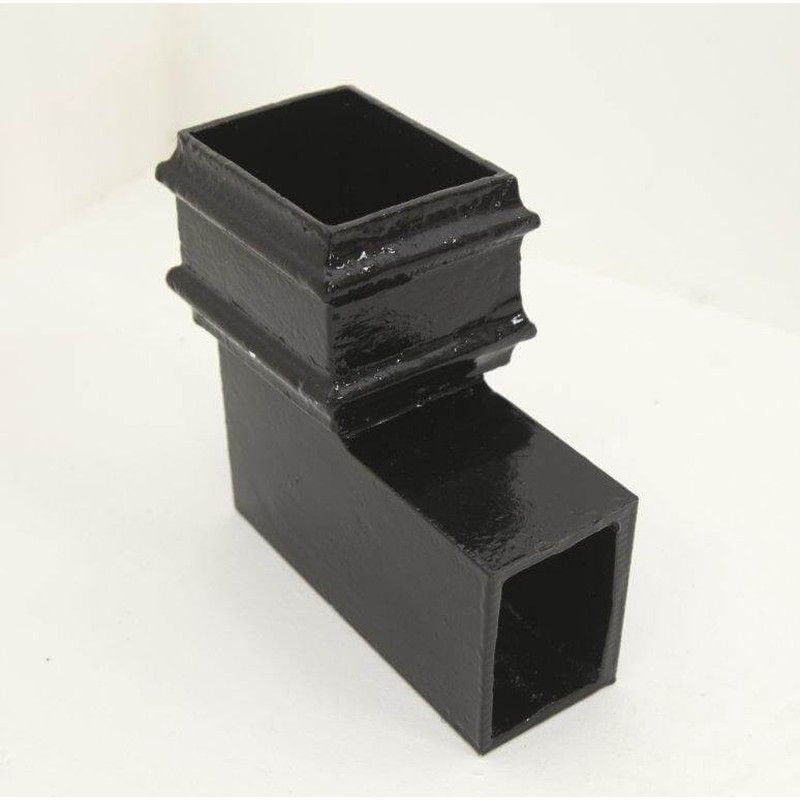

Cast Iron Square Downpipe Bend - 92.5 Degree x 75mm Black

This 92.5 bend is used in a 75mm black cast iron square downpipe system to change the plane of the bend from vertical to horizontal or vice versa.

They are often used instead of offset bends when the soffit is particularly wide - this enables the pipe to run neatly below the soffit rather than dropping down diagonally back to the wall as it would with a normal swan neck setup.

The angle of the bend is 92.5 degrees rather than 90 degrees to encourage a slight fall, enabling rainwater to run away rather than sit in the pipe.
